ACSR Flamingo 666.6MCM aluminum conductor steel reinforced ASTM B232/232M
ACSR Flamingo 666.6MCM aluminum conductor steel reinforced ASTM B232/232M is used for overhead transmission of bare conductors, primary and secondary distribution conductors. This conductor is typically preferred in a heavy construction area because of its reinforced steel core. Although it is heavier than AAC, it can be moved in and out of a construction area relatively easily. This cable is also useful in areas with high winds or frequent storms.
Standard
Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards
Electrical Properties
Density@20oC Aluminium: 2.703 kg/dm
Galvanised Steel: 7.80 kg/dm
Temperature Coefficient@20°C Aluminium: 0.00403 (°C)
Resistivity@20°C Aluminium: Should not exceed 0.028264
Linear Expansivity Aluminium: 23 x10 (°C)
Galvanised Steel: 11.5 x10 (1/°C)
Service Conditions
Ambient Temperature -5°C - 50°C
Wind Pressure 80 – 130kg/m^2
Seismic Acceleration 0.12 - 0.05g
Isokeraunic Level 10 – 18
Relative Humidity 5 – 100%
ACSR Flamingo 666.6MCM aluminum conductor steel reinforced ASTM B232/232M CONSTRUCTION PARAMETERS
| Code Word | Stranding | Nominal Overall Diameter | Mass | Rated Strength |
| | Aluminium Wires | Steel Wires | | | |
| | Number | Diameter | Number | Diameter | | | |
| | | mm | | mm | mm | kg/Km | kN |
| Brant | 24 | 3.27 | 1 | 2.18 | 19.61 | 761.05 | 64.94 |
| Flamingo | 24 | 4.23 | 7 | 2.82 | 25.4 | 1276.69 | 105.42 |
ACSR Flamingo 666.6MCM aluminum conductor steel reinforced ASTM B232/232M drawing
Why you choose us?
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional internation trade knowledge
- Technical support after sale.
About zhenglan cable technology co., ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Product Tags:
|
|

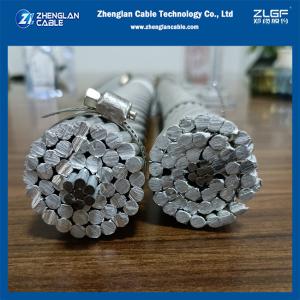

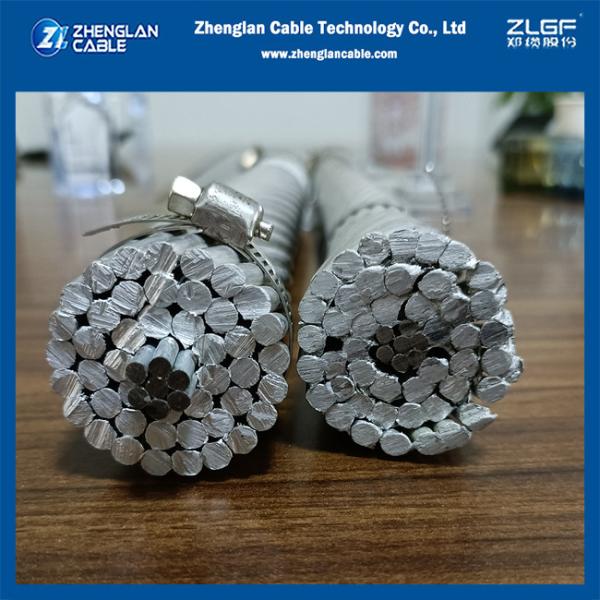

ACSR Flamingo 666.6MCM Aluminum Conductor Steel Reinforced ASTM B232/232M Images
|
