ACSR wire strand conductor Dog 100mm2(105/13.6mm2) (st/6/4.72mm, 7/1.57mm) EN50182
Steel core aluminum stranded wire refers to a reinforced conductor with a single or multiple layer of aluminum stranded wire twisted outside the galvanized steel core wire. Mainly used in the power and transmission line industries.
APPLICATION
Steel core aluminum stranded wire has the characteristics of very simple structure, convenient installation, convenient maintenance, low line cost, large transmission capacity, and is also conducive to laying across special geographical conditions such as rivers and valleys. It has good conductivity and sufficient mechanical strength, high tensile strength, and can be enlarged from tower to pole. Therefore, it is widely used in various voltage levels of overhead transmission and distribution lines.
REFERENCE STANDARD
Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.
TECHNICAL DATA for ACSR wire strand conductor Dog 100mm2(105/13.6mm2) (st/6/4.72mm, 7/1.57mm) EN50182
| Numbers of Wires | Modules of Elasticity | Coeficient of linear Expansion |
| AL | STEEL | Kg/mm2 | Lb/in2 | 1/Cº | 1/Fº |
| 6 | 1 | 81 | 11.5 x106 | 19.1 x10-6 | 10.6 x10-6 |
| 6 | 7 | 77 | 11.0 x106 | 19.8 x10-6 | 11.0 x10-6 |
| 12 | 7 | 107 | 15.2 x106 | 15.3 x10-6 | 8.5 x10-6 |
| 18 | 1 | 67 | 9.5 x106 | 21.2 x10-6 | 11.8 x10-6 |
| 24 | 7 | 74 | 10.5 x106 | 19.6 x10-6 | 10.9 x10-6 |
| 26 | 7 | 77 | 10.9 x106 | 18.9 x10-6 | 10.5 x10-6 |
| 28 | 7 | 79 | 11.2 x106 | 18.4 x10-6 | 10.2 x10-6 |
| 30 | 7 | 82 | 11.6 x106 | 17.8 x10-6 | 9.9 x10-6 |
| 30 | 19 | 80 | 11.4 x106 | 18.0 x10-6 | 10.0 x10-6 |
| 32 | 19 | 82 | 11.7 x106 | 17.5 x10-6 | 9.7 x10-6 |
| 54 | 7 | 70 | 9.9 x106 | 19.3 x10-6 | 10.7 x10-6 |
| 54 | 19 | 68 | 9.7 x106 | 19.4 x10-6 | 10.8 x10-6 |
ACSR wire strand conductor Dog 100mm2(105/13.6mm2) (st/6/4.72mm, 7/1.57mm) EN50182 CONSTRUCTION PARAMETERS
• IEC 60189
| CODE | CALCULATED AREA | STRAND | O.D. | RATED STRENGTH | RESISTANCE |
| DIA. | AT 20℃ |
| Al/St. | Al. | Steel | Total | Al. | Steel |
| mm2 | mm2 | mm2 | mm2 | mm | mm | mm | KN | Ω/km |
| 105-AL1/14-ST1A | 105 | 13.6 | 134.8 | 6/4.72 | 7/1.57 | 14.2 | 32.65 | 0.2733 |

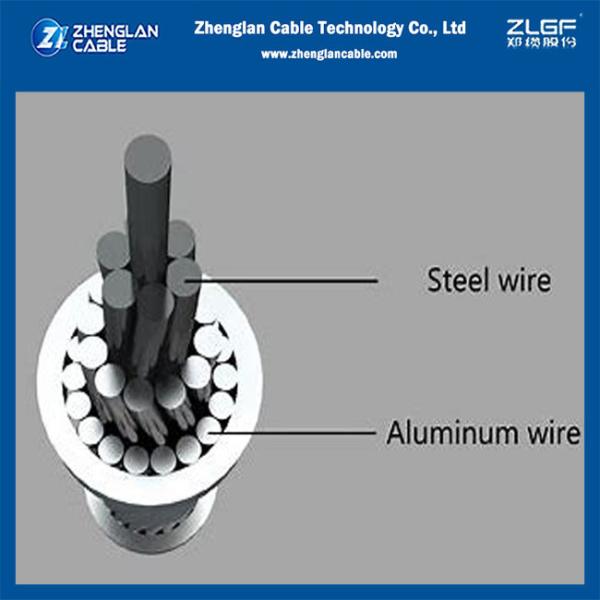

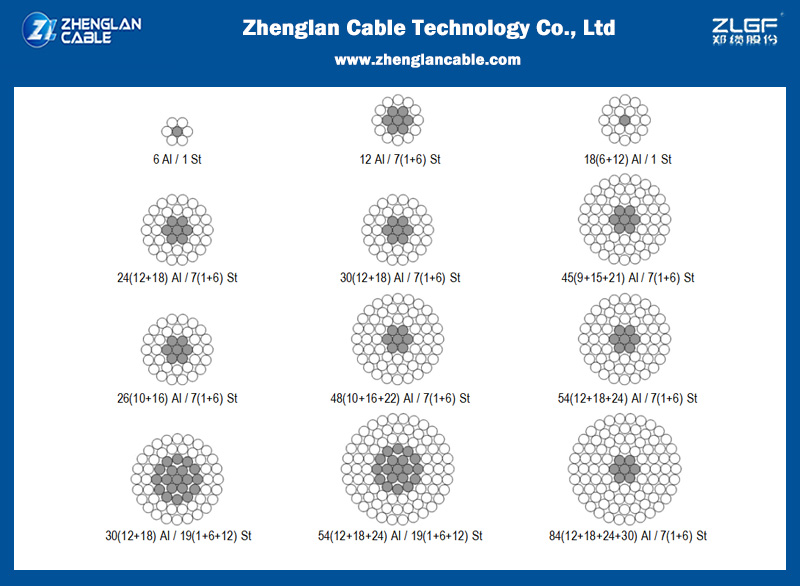

ACSR wire strand conductor Dog 100mm2(105/13.6mm2) (st/6/4.72mm, 7/1.57mm) EN50182 drawing
