8.7/15kv Medium Voltage Power Cable AWA Armored Cable 1x120/16mm2 Cu/SC/XLPE/SC/CWS/PVC/AWA/PVC IEC 60502-2
8.7/15kv Medium Voltage Power Cable AWA Armored Cable 1x120/16mm2 Cu/SC/XLPE/SC/CWS/PVC/AWA/PVC IEC 60502-2 Applications:
These cables are mainly used for power distribution in medium voltage. As transformer feeders in substations. In power plants, industrial and operation installations, in residential areas and mining installations, in dry or wet locations where extra mechanical protection is required. Suitable for installation indoor/outdoor, enclosed in conduit, in underground duct and buried directly.

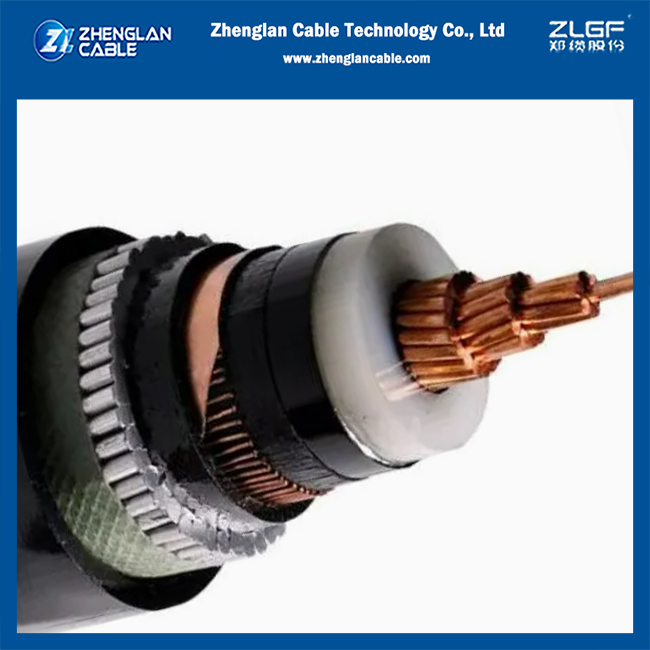

8.7/15kv Medium Voltage Power Cable AWA Armored Cable 1x120/16mm2 Cu/SC/XLPE/SC/CWS/PVC/AWA/PVC IEC 60502-2 Structure
1) Conductor: Solid or stranded circular conductors made of Copper Class 2
2) Conductor Screen: Semi-conducting, non-metallic compound
3) Insulation: XLPE (Cross-linked polyethylene)
4) Insulation Screen: Semi-conducting, non-metallic compound
5) Metallic Screen: Copper tape+copper wire
6) Filler: Non-hygroscopic material used
7) Binder Tape: Non-hygroscopic material used
8) Inner Covering: PVC (Polyvinyl chloride)
9) Armour: aluminum wire armour for protection
10) Binder Tape: Non-hygroscopic material used
11) Outer Sheath: PVC (Polyvinyl chloride)
8.7/15kv Medium Voltage Power Cable AWA Armored Cable 1x120/16mm2 Cu/SC/XLPE/SC/CWS/PVC/AWA/PVC IEC 60502-2 Technical Data Sheet
| Nom. Cross- Section Area | Nom. Insulation Thickness | Metallic screen | Aluminium Wire Armoured Cables |
| Copper Tape Thickness | Copper Wire Screen Area | Nom. Bedding Thickness | Armour Wire Size | Nom. Sheath Thickness | Approx. Overall Diameter | Approx. Weight |
| mm² | mm | mm | mm² | mm | mm | mm | mm | kg/km(cu) |
| 120 | 4.5 | 0.1 | 16 | 1.2 | 2 | 2.1 | 36 | 2310 |

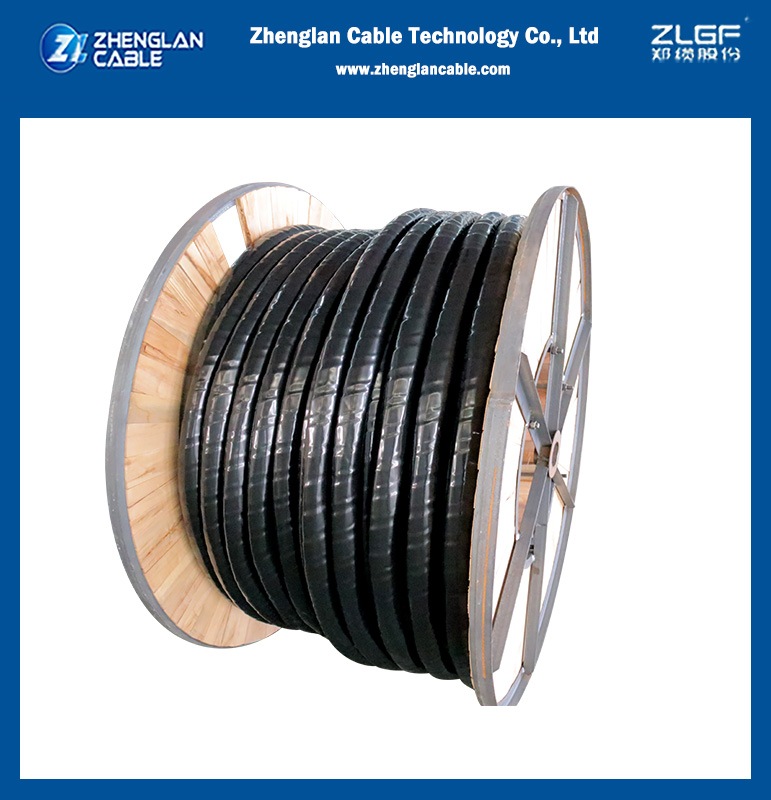

8.7/15kv Medium Voltage Power Cable AWA Armored Cable 1x120/16mm2 Cu/SC/XLPE/SC/CWS/PVC/AWA/PVC IEC 60502-2 Images
Why Choose Zhenglan Cable:
Medium voltage cables are manufactured using the monosil process. We provide the highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of PVC insulated cables for use up to 6KV and XLPE/EPR insulated cables for use at voltages up to 35 KV. The materials are all kept in cleanliness-controlled conditions throughout the production process in order to ensure the absolute homogeneity of the finished insulation materials.
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
